Belmont Blue Line Canopy

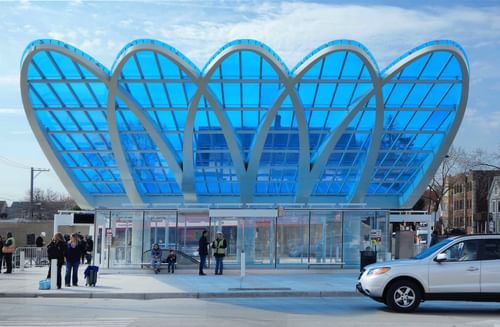

Historically, the Chicago Transit Authority has been a city center-focused system, optimized for weekday commuters. As the reach of public transit expands beyond the dense urban core, multi-modal transfer, between train and bus, can often be confusing and frustrating. The Belmont Gateway aims to provide an iconic transportation hub that provides needed amenities to pedestrians while generating a neighborhood identity for the Avondale community.

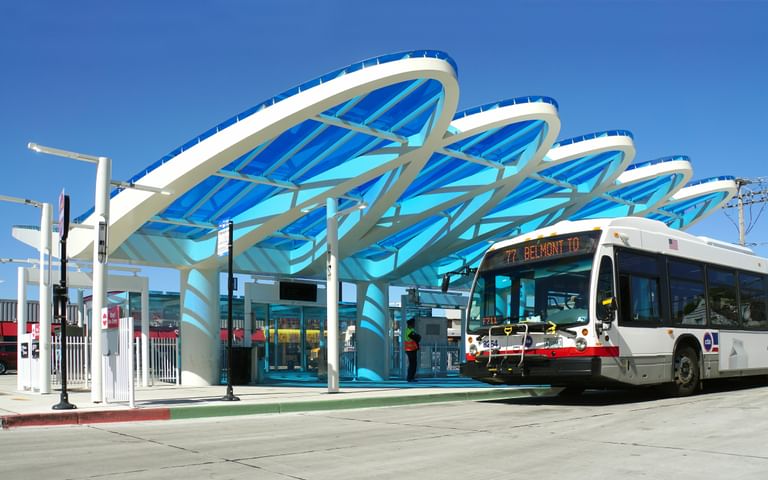

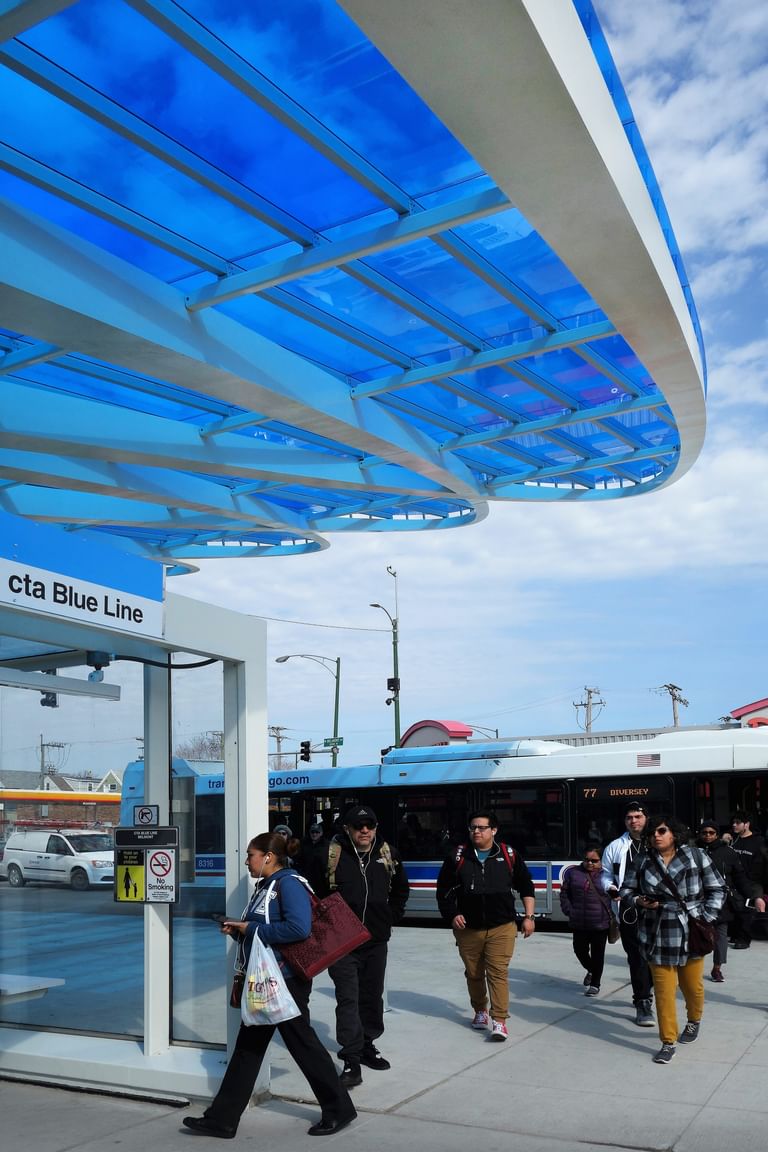

Inspired by one of Chicago’s “Seven Lost Wonders”, the Olson Waterfall, the station is animated with a dynamic form that is activated on a rainy day. By replacing existing infrastructure, connections to the underground station and numerous bus routes that intersect this busy corridor are improved and streamlined. The new organization provides dedicated waiting areas with a wind break, bus tracker, heat, and new way-finding maps.
Designed to accommodate a prepaid zone for buses, the station will be one of the first in the city to begin piloting new methods of passenger efficiency. In a second phase, both prepaid infrastructure and an elevator will be installed; consolidating the user experience for both train and bus passengers.

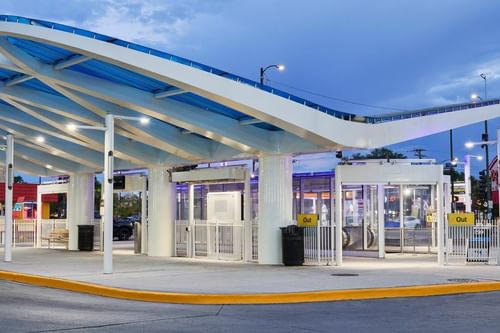

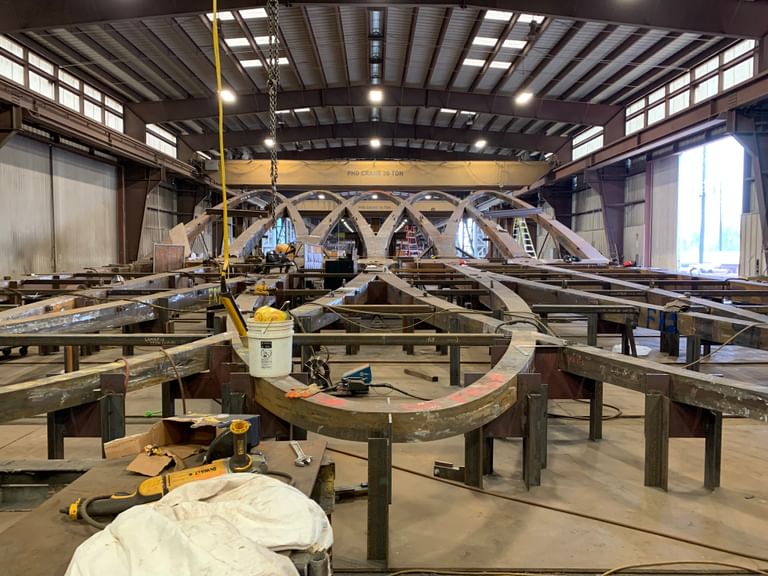

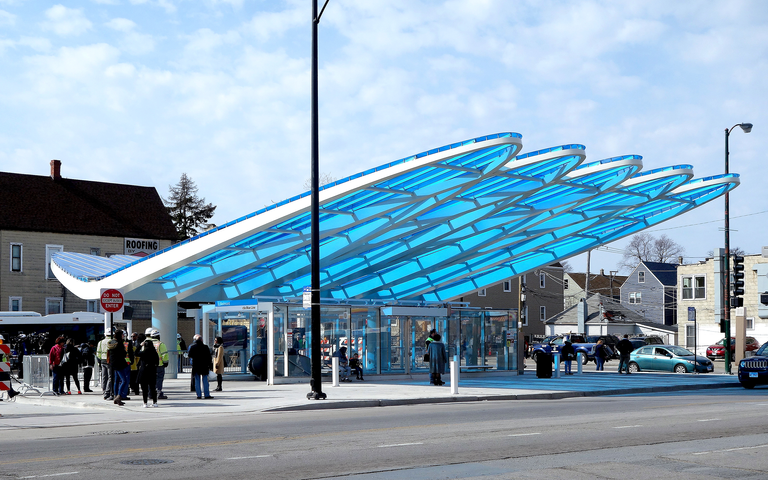

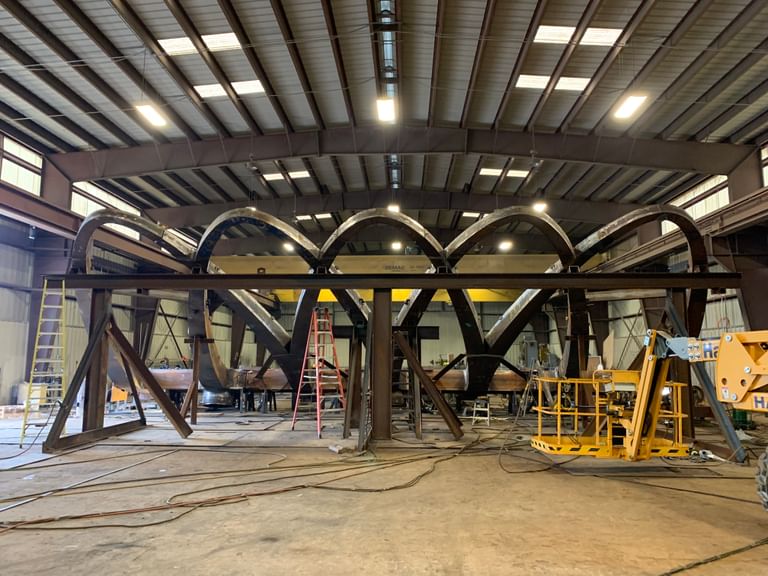

The winged canopy miraculously levitates on three piers, spanning to capture visibility from the street and providing protected areas for prepaid zones. The structure itself, which was shop-fabricated, sits atop three four-ton connection rings that help balance the exaggerated cantilevers from sway and movement. The end result is a community gateway; visually enhancing the street-level entrance to the subway station.
Client: Chicago Transit Authority
Program: Transit station upgrade
Cost: $17 million
Size: 85 feet long
Selected Awards/Honors
American Institute of Steel Construction, IDEAS Awards, Merit Award — Sculptures/Art Installations/Non-Building Structures, 2020.
Project Features
Chicago Tribune—“New $17 million CTA Belmont Blue Line station completed”
Curbed Chicago—“Now open: Belmont Gateway’s dramatic canopy inspired by Avondale’s lost waterfall”
Chicago Sun Times—“Bold new design is arriving at Belmont Blue Line stop”
Collaborative Partners
Simpson Gumpertz & Heger (Structural Engineer)
Luftwerk (Lighting Consultant)
Thirst (Wayfinding)
EXP (Design Build, Architect of Record, Structural Engineer of Record)
Facet Engineering (Electrical Engineer of Record)
Walsh Group (Erector and General Contractor)
Cast Connex Corporation (Castings)
AAA Engineering (Electrical Engineering)
Infrastructure Engineering Incorporated (Civil Engineering)
Drone Footage: © Nate Moser

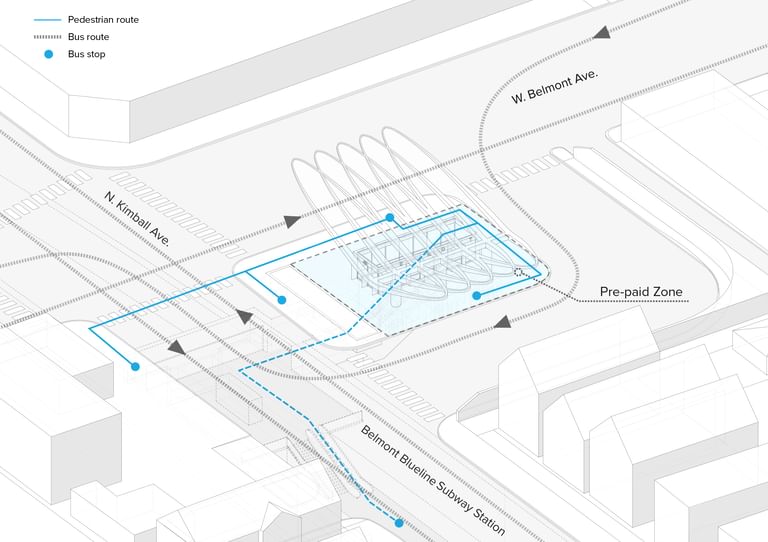

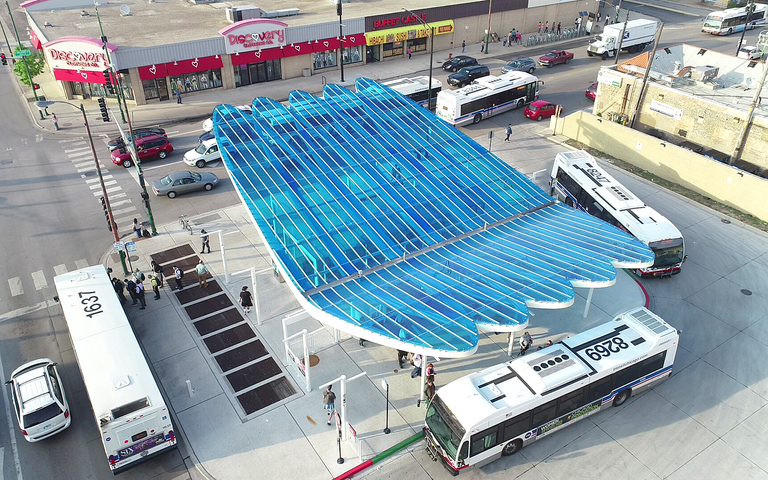

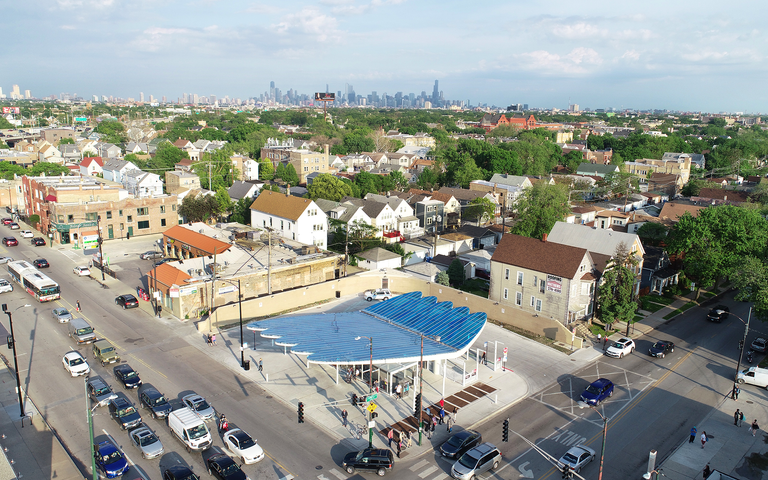

The Belmont Blue Line station sits at the intersection of two of the city’s busiest bus routes, a critical connection to O’Hare International Airport, four on / ramps to the Kennedy Expressway, and a Divvy Bike Sharing station.

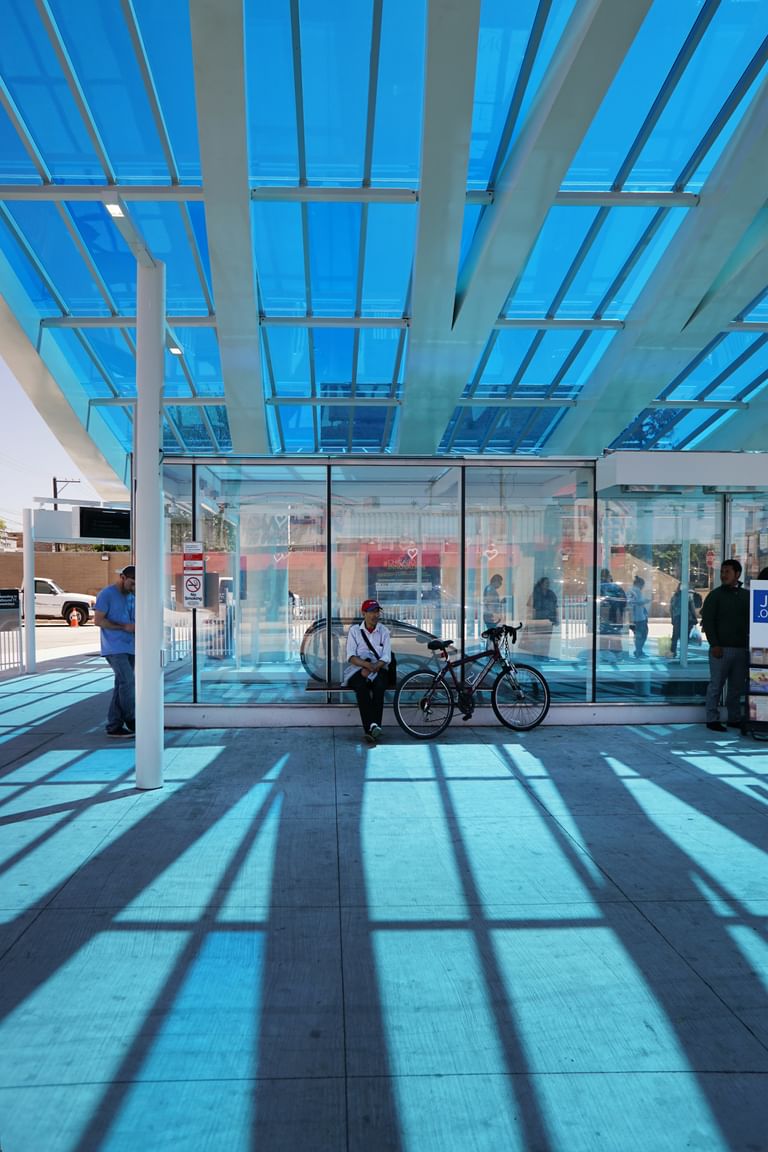

Sustainability in materiality is achieved through the use of concrete, polycarbonate panels with a high recycled content, and regionally fabricated steel.

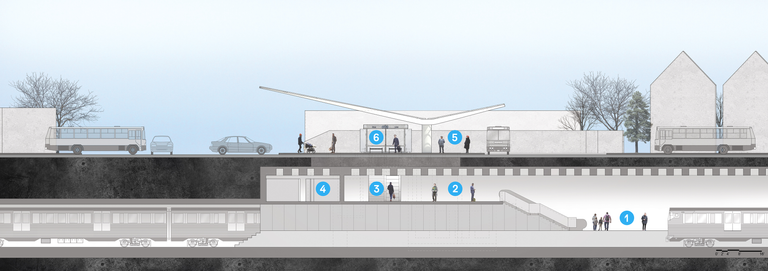

1. CTA Belmont Blue Line subway station — Platform
2. CTA Belmont Blue Line subway station — Mezzanine
3. Stair and Escalator
4. Mechanical room
5. CTA Blue pre-paid zone
6. Bus walking area

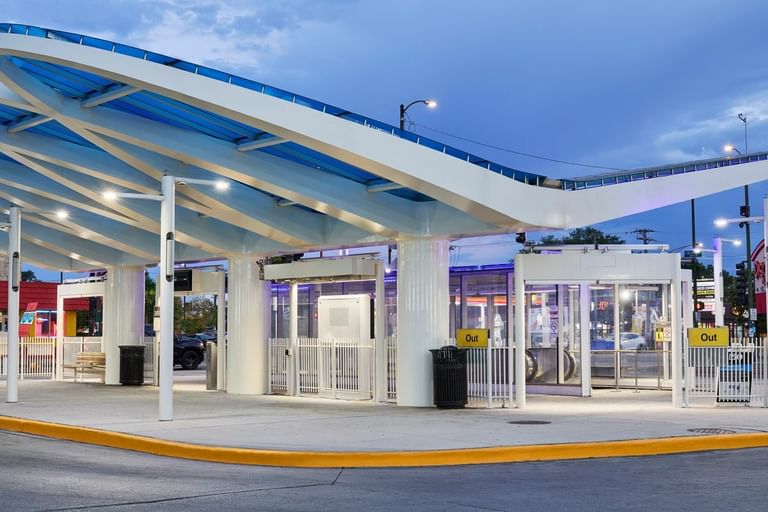

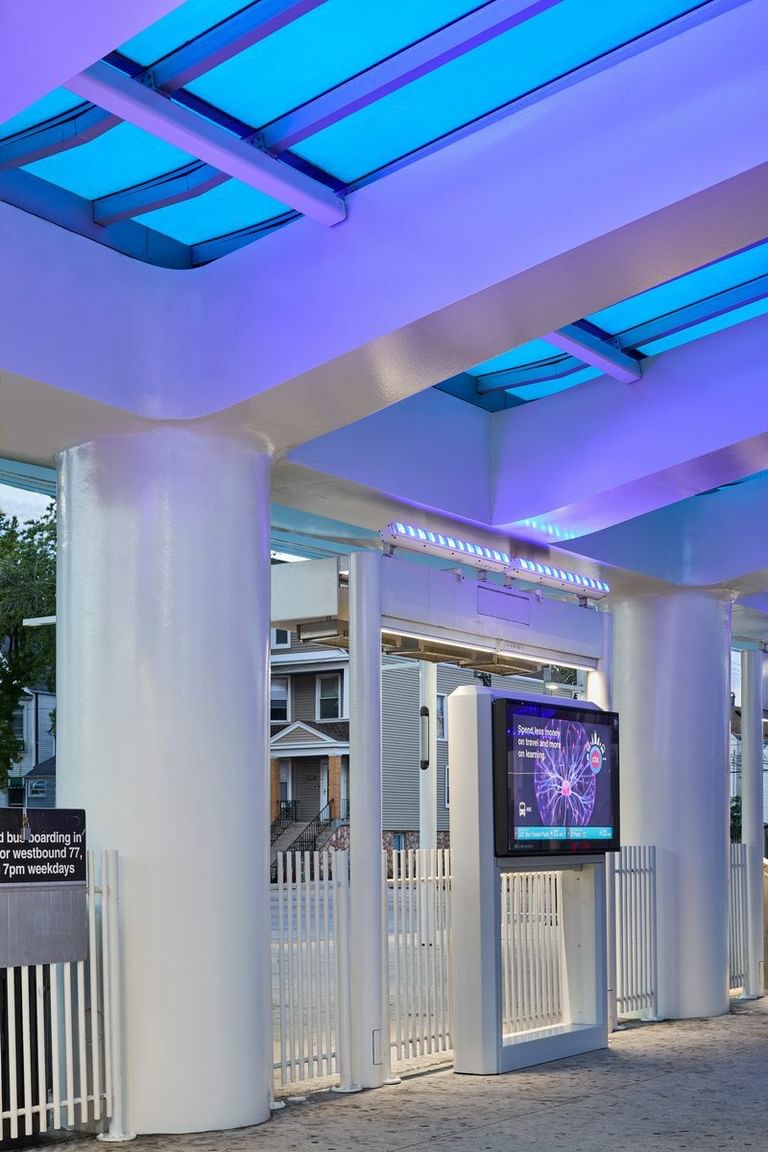

LED lighting is utilized, reducing energy usage.
